Reach and load requirements
Record the height and position of the work area, not only the height of the building. Include people, tools and materials in the planned platform load.
01Aerial work platform family
Self-PropelledScissor Lifts
Self-propelled scissor lifts are mobile elevating work platforms that combine vertical lifting with an onboard travel system. Compare the equipment family by the task, planned load, access route, site conditions and destination.
- Selection input 01
- Required reach
- Selection input 02
- People and material
- Selection input 03
- Site access
- Selection input 04
- Surface and power
02Product introduction
What is a self-propelled scissor lift?
A self-propelled scissor lift is a mobile elevating work platform that uses a scissor mechanism to raise the platform vertically and an onboard travel system to reposition the machine. Exact travel, elevation, surface and environmental limits depend on the model and its operating information.
Selection should begin with the work requirement rather than a model number. Define the required height information, combined weight of people, tools and materials, platform space, route to the work area, operating surface and power available at the site. Use the same field definitions and units when comparing model data.
Access and site conditions
Review the complete route from unloading to the work area, including clearances, turning space, transport limits, thresholds, slopes and surface conditions.
Operating environment and power
State the operating environment, travel surface and charging or power available. Suitability must be checked against the information for the exact model.
03Typical project tasks
Place the lift in its working context
These examples help organize an enquiry. Suitability still depends on the exact model, site, task and operating information reviewed for the project.
Facility maintenance and installation
Plan elevated inspection, installation or maintenance tasks together with the indoor route, floor condition, overhead space and nearby activity.
Warehouse and production work areas
Describe the work point, aisle and doorway clearances, platform activity and movement path through the operating area.
Prepared outdoor work zones
Document the travel surface, slopes, edges, weather exposure and delivery route before an exact model is reviewed for the task.

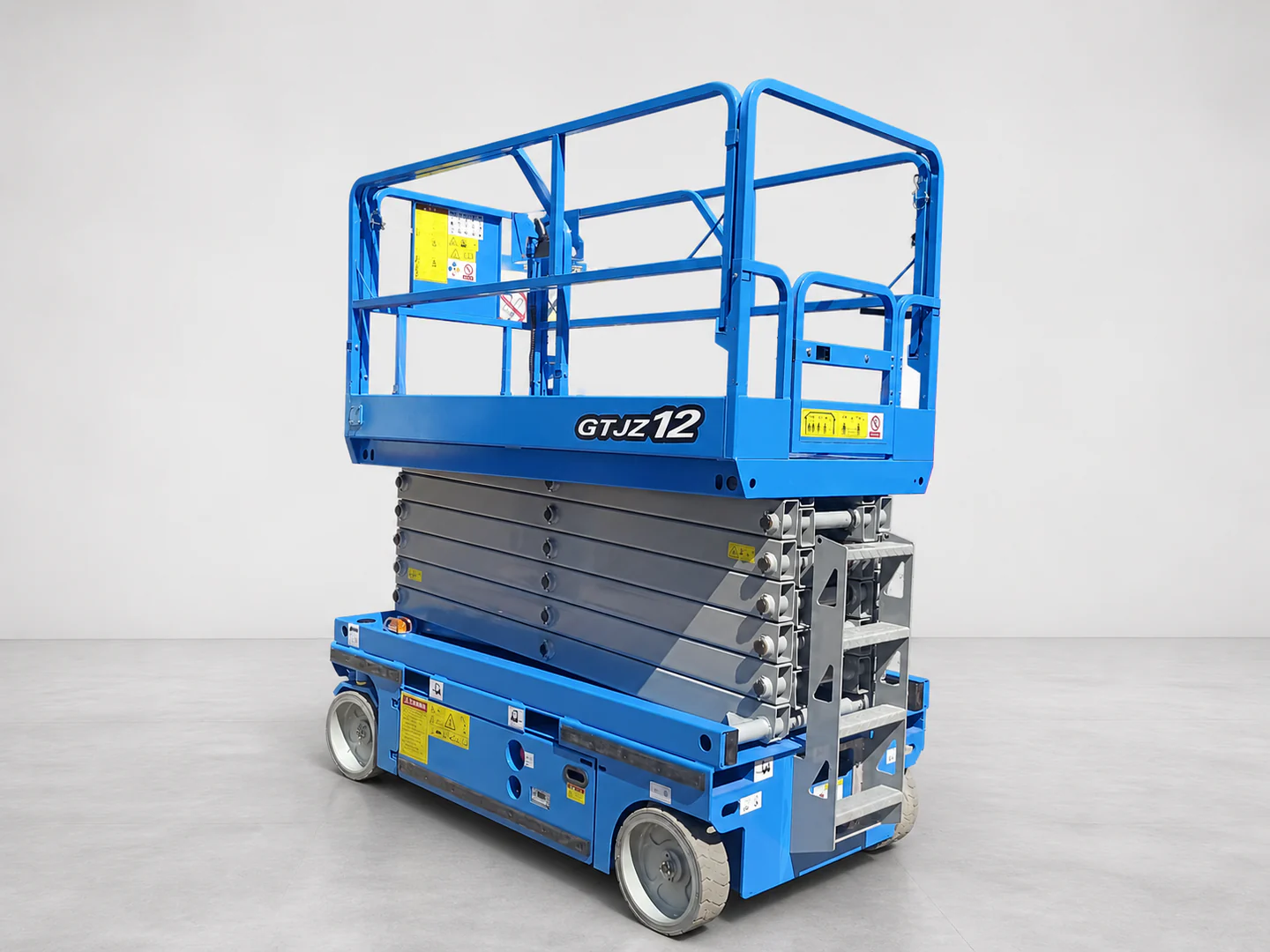

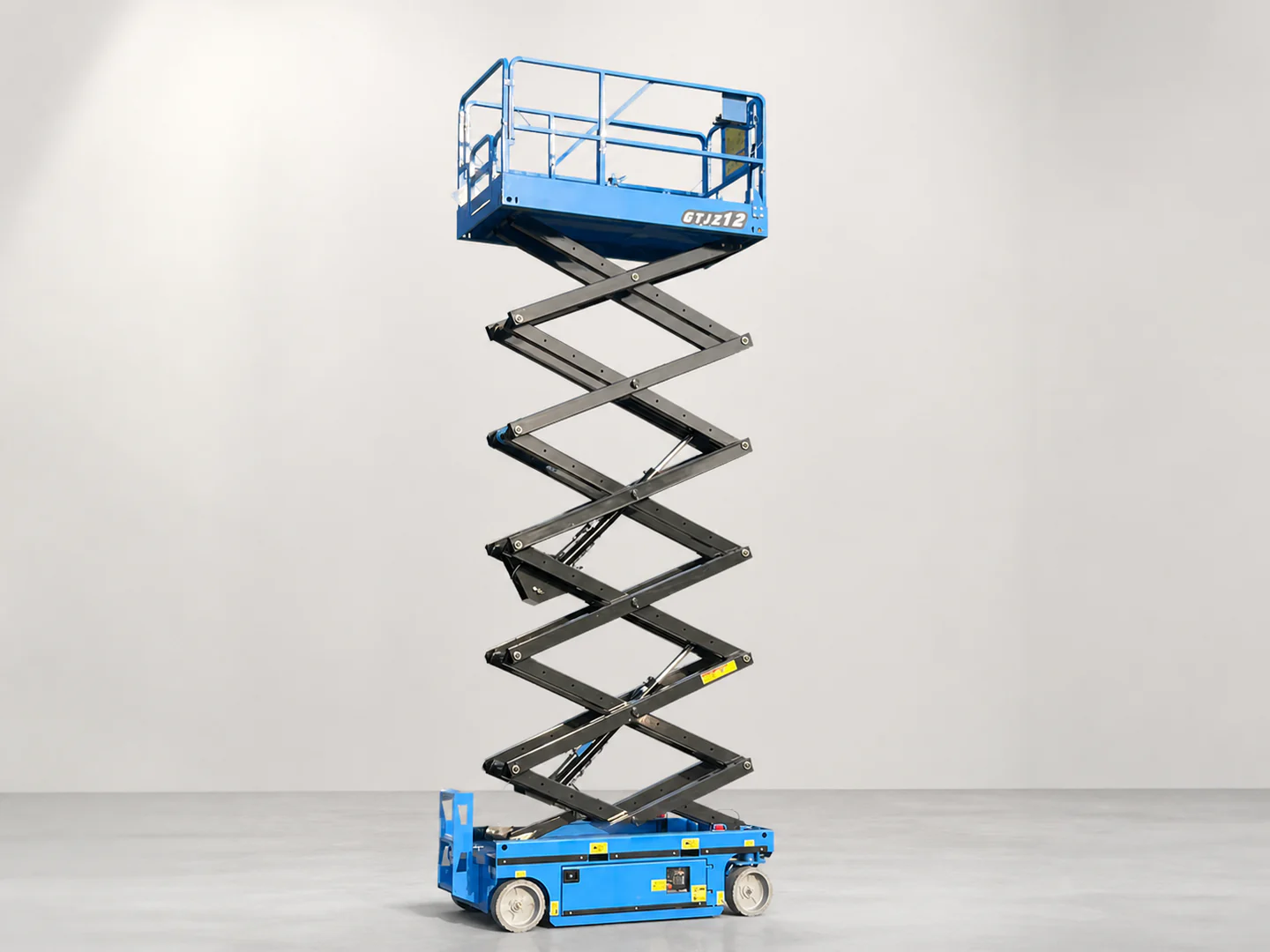

04Product views
See the complete structure
Full-machine framing makes the platform, scissor structure, chassis and wheel layout easier to review together.
05Model specifications
Compare GTJZ scissor lift models
The comparison matrix includes the same documented fields across every model shown. Open a model below to review its additional documented values.
| Specification | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
|---|---|---|---|---|---|
| Max. platform height | 6.00 m | 8.00 m | 10.00 m | 11.80 m | 13.80 m |
| Max. working height | 8.00 m | 10.00 m | 12.00 m | 13.80 m | 15.80 m |
| Rated platform capacity | 450 kg | 450 kg | 320 kg | 320 kg | 230 kg |
| Platform dimensions (L × W) | 2270 × 1110 mm | 2270 × 1110 mm | 2270 × 1110 mm | 2270 × 1110 mm | 2640 × 1130 mm |
| Platform extension | 0.90 m | 0.90 m | 0.90 m | 0.90 m | 0.90 m |
Detailed specifications
Open a model to review its available technical values. Include any additional dimension you need us to verify with your enquiry.
GTJZ06 6.00 m platform / 8.00 m working
| Max. platform height | 6.00 m |
|---|---|
| Max. working height | 8.00 m |
| Rated platform capacity | 450 kg |
| Extension capacity | 113 kg |
| Platform dimensions (L × W) | 2270 × 1110 mm |
| Platform extension | 0.90 m |
| Wheelbase | 1.89 m |
| Inner turning radius | 0 m |
| Outer turning radius | 2.20 m |
| Lift speed | 3–5 m/min |
| Travel speed, stowed | 3.5 km/h |
| Travel speed, raised | 0.8 km/h |
| Battery | 4 × 6 V / 200 Ah |
| Charger | 24 V / 30 A |
| Gradeability | 25% |
| Tire | Φ381 × 127 mm |
| Operating weight | 2,200 kg |
GTJZ08 8.00 m platform / 10.00 m working
| Max. platform height | 8.00 m |
|---|---|
| Max. working height | 10.00 m |
| Rated platform capacity | 450 kg |
| Extension capacity | 113 kg |
| Platform dimensions (L × W) | 2270 × 1110 mm |
| Platform extension | 0.90 m |
| Wheelbase | 1.89 m |
| Inner turning radius | 0 m |
| Outer turning radius | 2.20 m |
| Lift speed | 3–5 m/min |
| Travel speed, stowed | 3.5 km/h |
| Travel speed, raised | 0.8 km/h |
| Battery | 4 × 6 V / 200 Ah |
| Charger | 24 V / 30 A |
| Gradeability | 25% |
| Tire | Φ381 × 127 mm |
GTJZ10 10.00 m platform / 12.00 m working
| Max. platform height | 10.00 m |
|---|---|
| Max. working height | 12.00 m |
| Rated platform capacity | 320 kg |
| Extension capacity | 113 kg |
| Platform dimensions (L × W) | 2270 × 1110 mm |
| Platform extension | 0.90 m |
| Wheelbase | 1.89 m |
| Inner turning radius | 0 m |
| Outer turning radius | 2.20 m |
| Lift speed | 3–5 m/min |
| Travel speed, stowed | 3.5 km/h |
| Travel speed, raised | 0.8 km/h |
| Battery | 4 × 6 V / 200 Ah |
| Charger | 24 V / 30 A |
| Gradeability | 25% |
| Tire | Φ381 × 127 mm |
| Operating weight | 2,600 kg |
GTJZ12 11.80 m platform / 13.80 m working
| Max. platform height | 11.80 m |
|---|---|
| Max. working height | 13.80 m |
| Rated platform capacity | 320 kg |
| Extension capacity | 113 kg |
| Platform dimensions (L × W) | 2270 × 1110 mm |
| Platform extension | 0.90 m |
| Wheelbase | 1.89 m |
| Inner turning radius | 0 m |
| Outer turning radius | 2.20 m |
| Lift speed | 3–5 m/min |
| Travel speed, stowed | 3.5 km/h |
| Travel speed, raised | 0.8 km/h |
| Battery | 4 × 6 V / 200 Ah |
| Charger | 24 V / 30 A |
| Gradeability | 25% |
| Tire | Φ381 × 127 mm |
GTJZ14 13.80 m platform / 15.80 m working
| Max. platform height | 13.80 m |
|---|---|
| Max. working height | 15.80 m |
| Rated platform capacity | 230 kg |
| Extension capacity | 100 kg |
| Platform dimensions (L × W) | 2640 × 1130 mm |
| Platform extension | 0.90 m |
| Wheelbase | 2.24 m |
| Inner turning radius | 0 m |
| Outer turning radius | 2.80 m |
| Lift speed | 3–5 m/min |
| Travel speed, stowed | 3.5 km/h |
| Travel speed, raised | 0.8 km/h |
| Battery | 4 × 6 V / 240 Ah |
| Charger | 24 V / 30 A |
| Gradeability | 25% |
| Tire | Φ381 × 127 mm |
| Operating weight | 3,600 kg |
06Comparable enquiry
Build the request around the same inputs
A consistent set of project inputs makes later model and configuration comparisons clearer.
| Project input | Information to provide |
|---|---|
| Work requirement | Required reach, task description and the work area to be accessed. |
| Load plan | People, tools, materials and any extension-deck requirement. |
| Site limits | Access width, route, surface, slopes, floor limits and available power. |
| Delivery plan | Quantity, destination, preferred trade term and purchasing timeline. |
07Selection information
Compare the fields that shape your enquiry
Share what is already known and identify any information that is still open.
Height
Separate the platform position from the work point
Record the platform position you need, then describe the point where the task takes place. Maximum platform height and maximum working height are separate fields in the model comparison. Keep each label and unit with its value; do not replace one with the other.
Load
Describe everyone and everything planned for the platform
List the people, tools and materials included in the planned platform load. Compare rated platform capacity and extension capacity as separate fields. A listed value is a model reference; it does not by itself confirm the complete task or site.
Platform
Check the working space and the extension separately
Record the platform space the task requires. On this page, platform dimensions mean the platform length × width shown for each model, while platform extension is a separate field. Neither field is an overall machine dimension or a complete access-route measurement.
Access
Measure the complete route to the work area
Record the narrowest clear width and height, turns, thresholds, floor transitions, storage position and unloading route. Wheelbase and turning-radius fields help organize a model review, but they do not establish that the full machine or route will fit.
Power
Include the available charging and storage conditions
Record the electrical supply and charging and storage conditions available at the site. The comparison lists Battery and Charger as separate model fields. Those fields do not establish charging time, operating duration or site-supply compatibility unless those points are separately confirmed.
08Project review path
Move from the task to a model comparison
This is a planning sequence. The operating instructions for the selected machine and the site procedure govern actual use.
- 01
Define the raised task
Separate the required platform position from the actual work point, then record the people, tools and materials involved.
- 02
Measure the complete route
Check unloading, doors, aisles, turns, thresholds, floor conditions, slopes, storage and the final operating position.
- 03
Compare confirmed model fields
Use the same definitions and units for height, load, platform, machine envelope and power before requesting a final configuration review.
09Buying questions
Prepare a focused comparison
Can I choose a model by working height alone?
No. Height is only one selection input. Planned load, platform space, access dimensions, operating surface, power conditions and transport requirements also need to be considered.
How do I know whether a machine will fit through the site?
Record the narrowest clear width and height along the complete route, together with turning space, thresholds, transport limits and unloading conditions. Include these measurements with your enquiry; do not assume the machine will fit from platform dimensions alone.
How should platform height and working height be compared?
Treat them as separate fields. Confirm which height definition a source uses, keep units consistent and do not substitute one value for the other.
Do I need to choose an exact model before requesting a quote?
No. A model reference is optional. The task, height information, load plan, access route, site conditions and destination provide the starting context.
Can I request a quotation before every detail is known?
Yes. Send the information already available, identify the open items and add the project destination.
Can I attach drawings or site photos?
Yes. The enquiry form accepts PDF, JPG and PNG files. You can attach up to three files, with a maximum size of 10 MB for each file.
11Project enquiry
Tell us what the machine needs to do
Start with your application, destination and the site information already available.
