Boom lift series

Towable Articulating Boom Lifts

Reserve the towing route and the full deployed support area.

Define the work point, horizontal obstacle, platform task, equipment position, movement route and site conditions before requesting a configuration review.

Request a project review Prepare project inputs

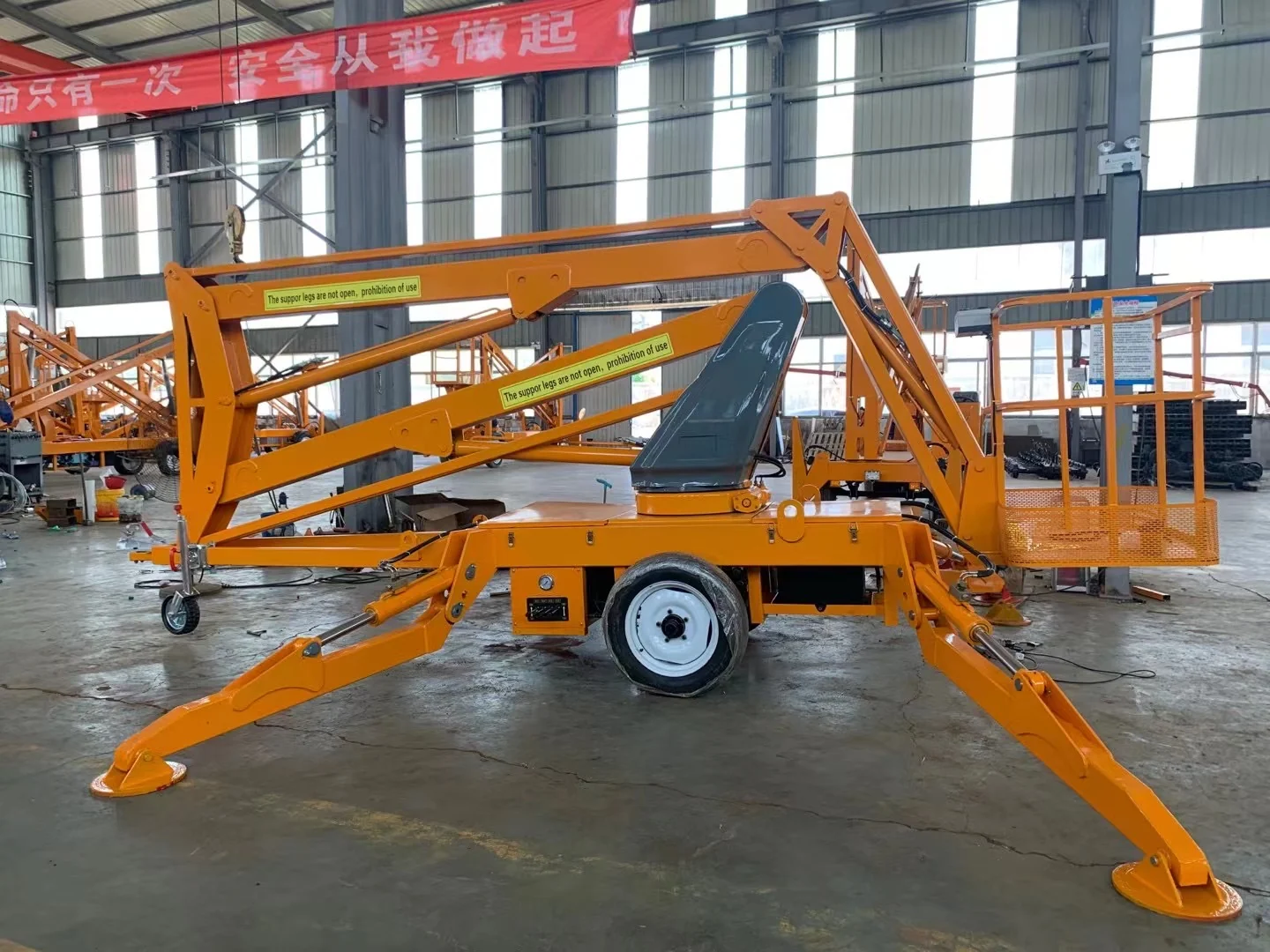

Complete orange towable articulating boom lift folded with supports deployed in a workshop
Folded structure · deployed supports

01 / Category boundary

Define the task before the configuration.

A towable articulating boom lift combines an articulated platform boom with a trailer-style carrier and a deployed support arrangement.

The series name identifies the carrier and boom path shown here. It does not confirm a model, working envelope, platform capacity, transport condition, power option or application suitability.

Work point
Locate the platform task relative to the equipment setup position.
Obstacle geometry
Measure the height, depth and horizontal offset of structures that must be crossed.
Towing and support
Describe the towing route, positioning method and available area for the deployed supports.

02 / Equipment guide

Understand the structure and compare the task.

Connect the equipment arrangement to your work area, movement route and operating conditions.

Structure and movement

The towable articulating category combines a towable base with a jointed boom arrangement. Towing to a work area, positioning the base and accessing the work point are separate stages. Describe the transport and setup task without treating a towing arrangement as a platform operating capability.

Use a side view or simple sketch to show the base position, target work point and intervening obstacles. Include horizontal offset as well as vertical position. Add the approach route and available setup footprint on a plan view so access and platform movement can be reviewed together.

Compare the series in context

Compare this series with a self-propelled articulating arrangement by the required movement between work positions and the site's transport constraints. Record the required power context separately. Do not combine details from differently identified equipment documents into one assumed configuration.

Conditions to establish

State the intended operating environment, ground conditions, space around the base and platform activity. For the movement brief, add access width, turning space and any transport restrictions. The work-point height alone does not define the boom path.

03 / Applications

Place the equipment in its working context.

Start with the task, access route and surrounding conditions, then review the configuration against the complete site brief.

01

Obstacle-reach planning

Organize an elevated task around the work point, horizontal offset and obstacle profile.

02

Towed access to a setup position

Describe the towing route, arrival position and available turning space.

03

Deployed-support projects

Review tasks where support footprint, setup area, transport and storage are separate parts of the plan.

05 / Selection inputs

Define reach, movement and setup together.

Separate measured geometry from the operating task so the boom structure and carrier can be reviewed against one clear site layout.

  1. 01

    Vertical work position

    State the platform position and actual work point separately.

  2. 02

    Horizontal offset

    Measure from the planned machine position to the nearest and furthest task points.

  3. 03

    Obstacle profile

    Show walls, roofs, machinery, openings and overhead restrictions.

  4. 04

    Towing and support

    Describe the towing route, positioning method and available area for the deployed supports.

  5. 05

    Transport route

    Provide gate, road, turning, storage and destination constraints for the trailer-style carrier.

  6. 06

    Platform and environment

    Describe people, tools, materials, ground, weather exposure and destination.

06 / Project path

Turn site information into a reviewable brief.

Keep the project sequence visible so measurements, configuration questions and supporting files reach the enquiry together.

  1. 01

    Define the work-point geometry

    Mark the vertical position, horizontal relationship and obstacle dimensions.

  2. 02

    Plan towing and setup

    Record the towing route, carrier access, turning area and deployed-support footprint.

  3. 03

    Review the operating context

    Add the platform task, site environment, storage, destination and transport constraints.

07 / Buyer questions

Planning FAQ

Common questions about equipment selection and preparing your enquiry.

01 What dimensions should I send?

Send the equipment setup area, work-point height, horizontal offsets, obstacle profile and the narrowest point on the movement route.

02 Can I select this series from height alone?

No. Horizontal access, carrier, setup area, platform task, ground and transport also affect the project review.

03 Why show folded and extended views?

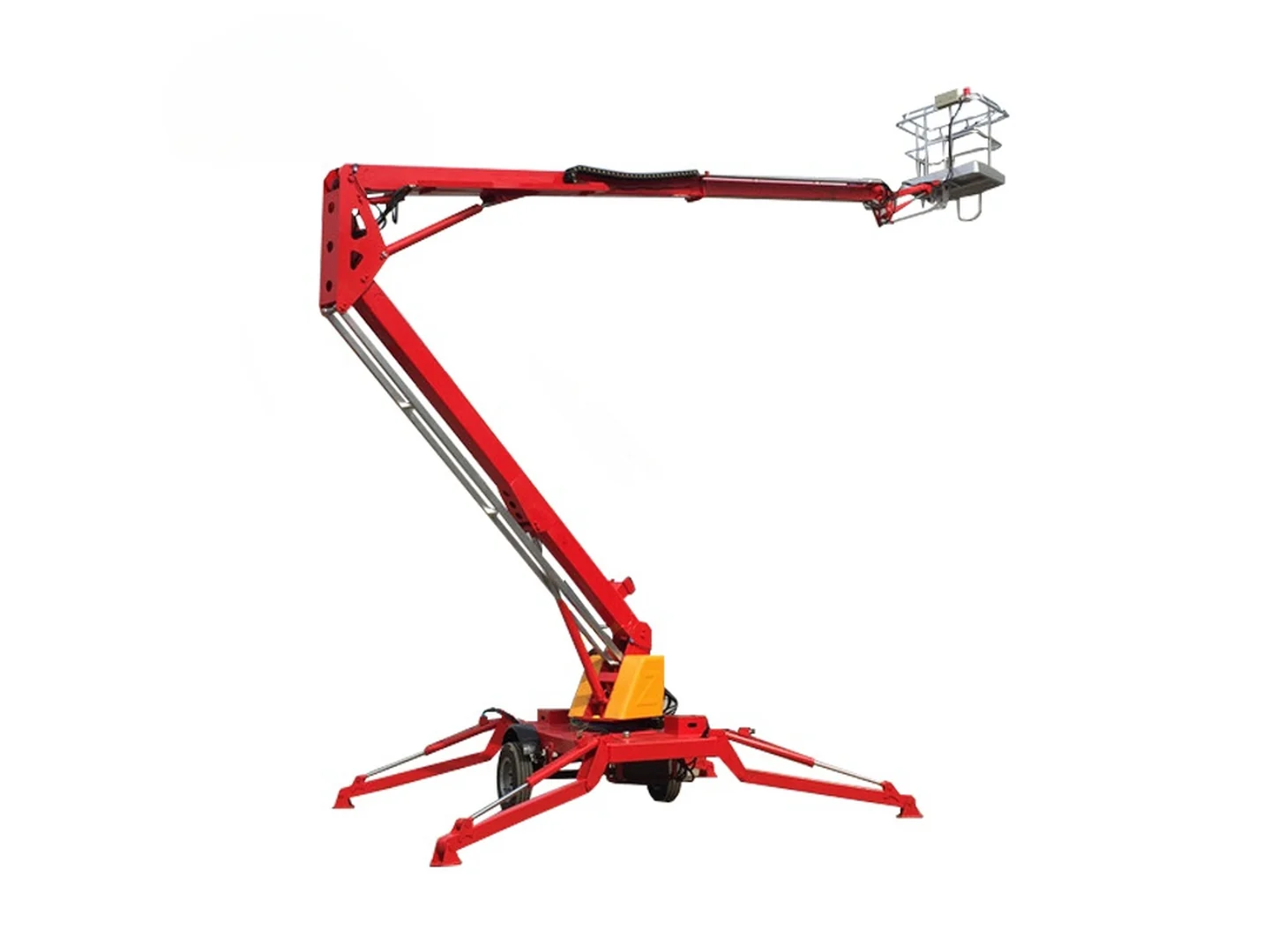

The folded view explains the carrier and transport envelope; the extended view explains the boom structure and platform path.

04 Do these images confirm performance?

No. They show the general equipment structure and do not establish a model or working envelope.

Related paths

Start the project brief

Send the interface, route and site context.

The product family is carried into the enquiry form so the follow-up starts from the right category.
